WAGO Lighting Connectors (Box of 100)

Product Information

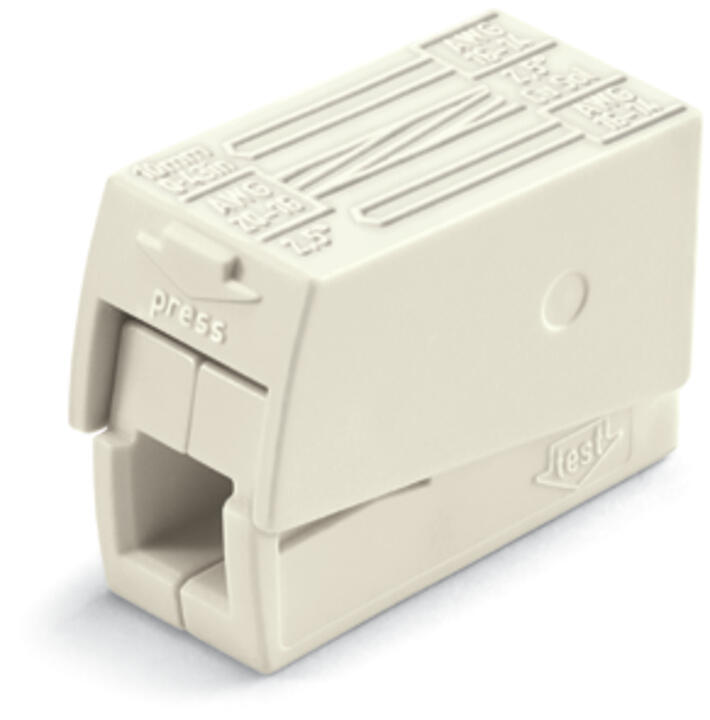

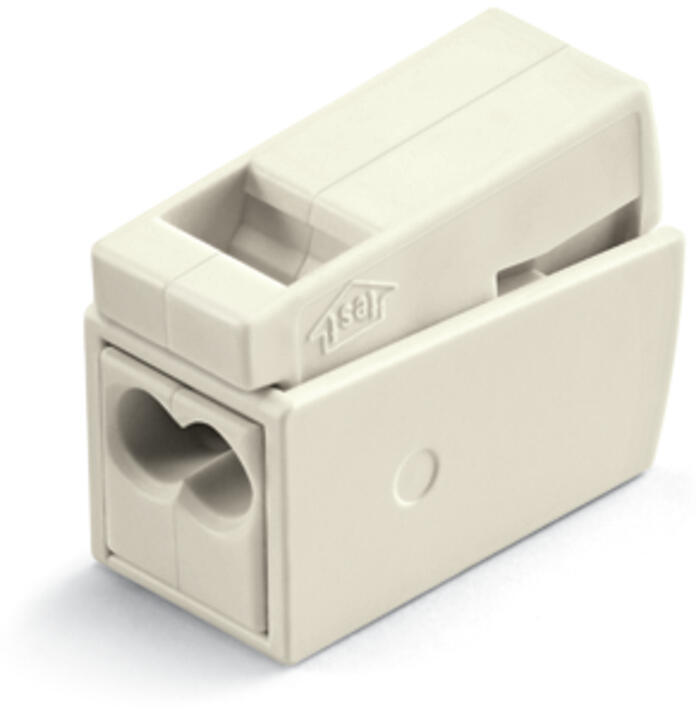

The WAGO 224-112 is a 2-conductor push-wire lighting connector from WAGO's trusted 224 Series, designed to join a fixed lighting circuit cable to a luminaire or pendant flex without needing a ceiling rose or terminal block. A push-button lever on the lighting side releases the cage clamp for fast, tool-free reconnection, while the installation side uses a one-step push-wire entry for solid conductors. Supplied in a box of 100, it's built for tradesmen who need reliable, site-ready stock for loft lighting, rewires and general electrical installation work.

Features & Benefits

• Push-button release on the lighting side for quick, tool-free disconnection and rewiring – handy when reworking fittings in a loft or tight void.
• Universal conductor acceptance on the lighting side – takes solid, flexible/fine-stranded and ferruled conductors.
• One-step push-wire connection on the installation side for solid conductors – no stripping tools or screwdriver needed.
• Rated 24 A / 400 V, suitable for standard UK domestic and light commercial lighting circuits.
• Accepts 0.5–2.5 mm² conductors (installation side 1–2.5 mm², 16–14 AWG), covering the vast majority of UK lighting cable sizes.

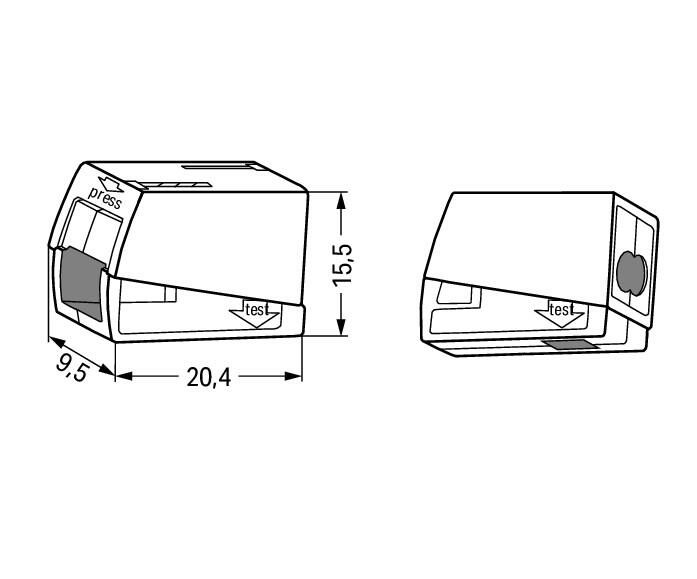

• Compact footprint (approx. 20.4 x 8 x 15.5 mm) fits neatly into ceiling roses, loft junction boxes and tight fixture backplates.
• White housing blends discreetly behind most ceiling and fitting finishes.
• RoHS compliant and built to WAGO's manufacturing standard.
• Box of 100 – ideal van stock for loft installers, electricians and multi-property maintenance teams.

Important Information

• Always isolate the electrical supply before installing or removing any connector. Installation must be carried out by a competent person in accordance with BS 7671 (IET Wiring Regulations).
• The installation side accepts solid conductors only – do not insert stranded or fine-wire conductors into the push-wire side.
• Maximum surrounding air temperature: 60°C.
• Notifiable electrical work in England and Wales may fall under Part P Building Regulations – check before carrying out loft or new circuit installation work.
• Manufacturer product code: 4044918583596. Images are for illustration; always refer to WAGO's official datasheet for full technical data.
